Sliding Mesh
Runs on its own track beside the window sash — the everyday choice for sliding windows.
- 2 and 3 track systems
- Aluminium or uPVC frame
- Runs with the window
- Easy to remove and clean
- Low cost per opening
Insect Screens
Mosquito Mesh
Sliding, pleated, openable and roll-up insect screens — cut to your window or door opening so the mesh seals all round and still lets the air through.
Mosquito Mesh
Keep the air in and the mosquitoes out.
A mesh only works if it seals on all four sides. Screens cut to a standard size and packed out with beading leave gaps at the corners — which is exactly where insects get in.
We measure each opening, make the frame to that size, and choose the screen type that suits how the window is used — sliding for daily use, pleated for wide openings, openable for windows you clean often.
See completed work
What We Make
Mesh types for every opening.
The right type depends on the opening width, how often it is used, and whether the view matters.
Pleated Mesh
Folds flat to one side like a concertina — ideal for wide openings and doors.
- Retracts almost fully
- Wide spans without a centre post
- Clear view when folded
- Bottom track or track-free
- Child-safe cord-free option

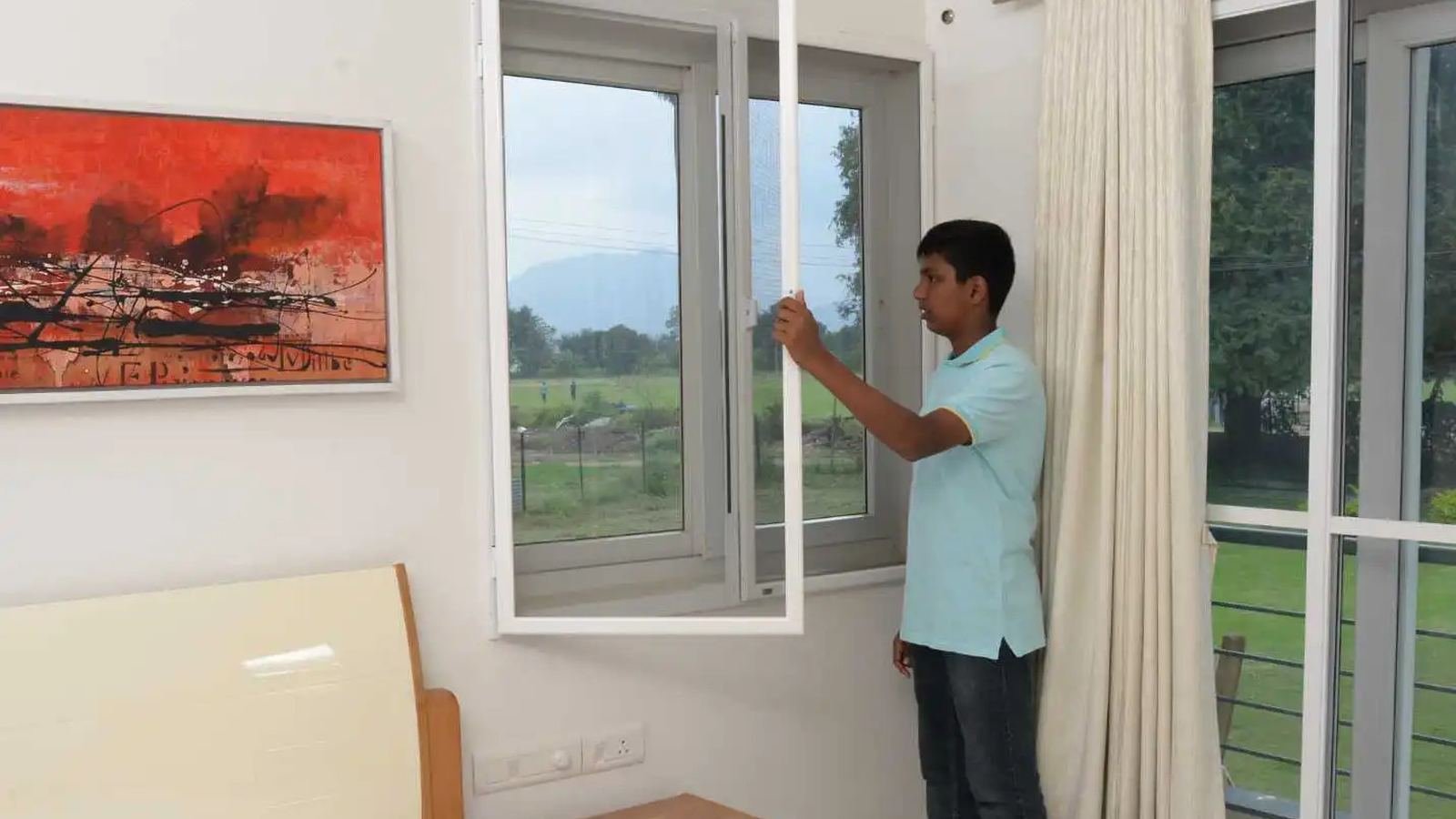

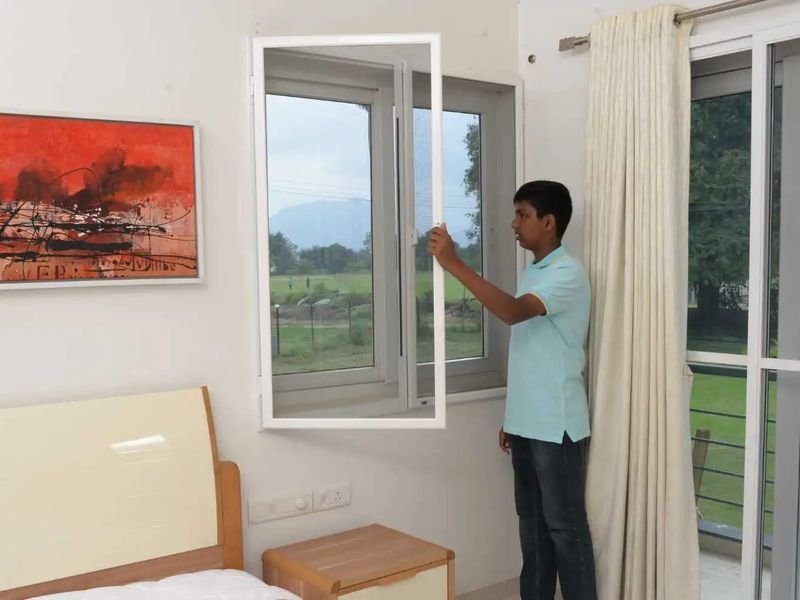

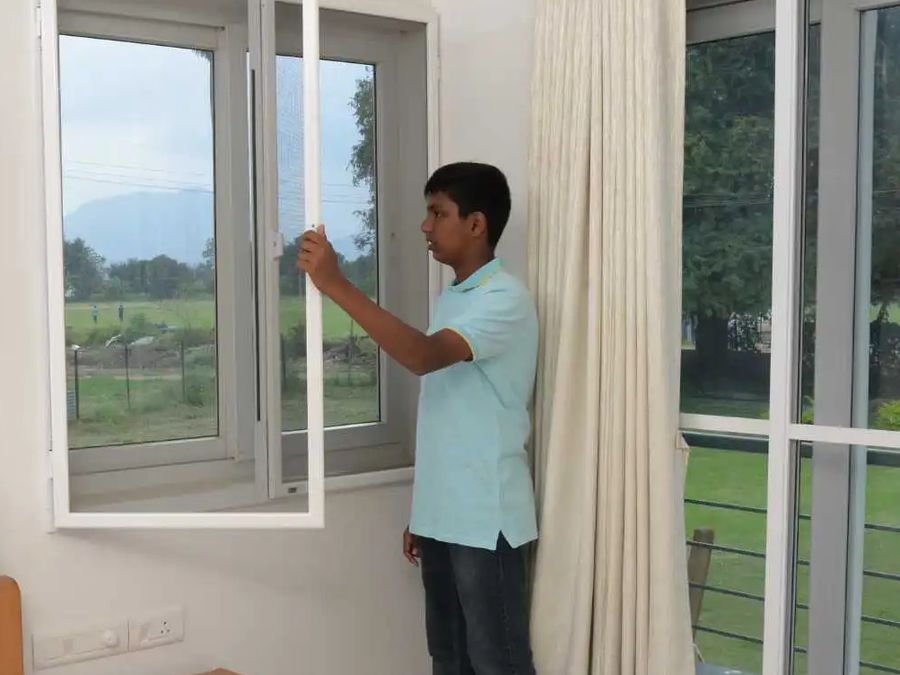

Openable / Hinged Mesh
A hinged mesh shutter on the frame — opens like a casement window.
- Hinged mesh shutter
- Magnetic or latch closing
- Best for casement windows
- Full access for cleaning
- Powder-coated frame
Roll-up Mesh
Pulls down when needed and rolls back into a top cassette when not.
- Top cassette housing
- Spring or chain operated
- Suits balconies and ventilators
- Out of sight when open
- Compact fitting
Door Mesh
Screens for main doors, kitchen doors and balcony doors, in sliding or hinged form.
- Sliding door mesh
- Hinged door mesh
- Pleated door screens
- Pet-resistant mesh option
- Floor track or track-free
Fixed Mesh Panels
A permanent screen for ventilators, staircase openings and windows that stay open.
- Fixed frame panels
- Ventilator and duct screens
- Balcony grill mesh
- Velcro-fixed removable option
- Cut to any shape
Materials & Specifications
Mesh material and frame options.
Typical specification — the mesh and frame are matched to the opening size and how exposed it is.
| Fibreglass mesh | 18×16 mesh count, PVC-coated — the standard choice; flexible and does not dent |
|---|---|
| Stainless steel mesh | SS 304 mesh where strength matters — ground floor windows, pets, exposed openings |
| Pet-resistant mesh | Heavy-duty polyester weave for doors used by cats and dogs |
| Frames | Aluminium or uPVC section, powder-coated white, brown, black or ivory |
| Fitting | Inside the existing frame, on the face of the opening, or integrated into a new uPVC window |
| Operation | Sliding on track, hinged with magnet or latch, pleated concertina, or roll-up cassette |
| Serviceability | Screens can be removed for washing; mesh is replaceable without changing the frame |
Not sure which type fits your window? Send a photo of the opening with a rough width and height and we will suggest the right one.
Benefits
What a properly fitted screen gives you.
01
Sealed on all sides
Made to the measured opening, so there is no corner gap for insects to find.
02
Airflow kept
You can leave windows open through the night and still keep the room clear.
03
No spray needed
Cuts down on repellents and coils, which matters in bedrooms and children's rooms.
04
Easy to clean
Removable and washable screens; mesh can be replaced without a new frame.
Project Gallery
Mesh work we have completed.

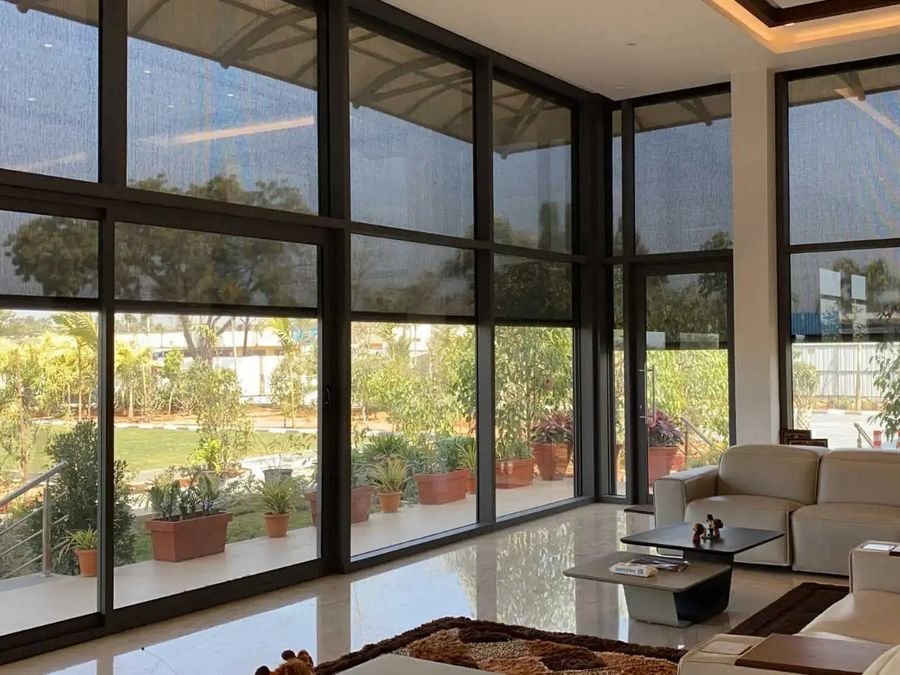

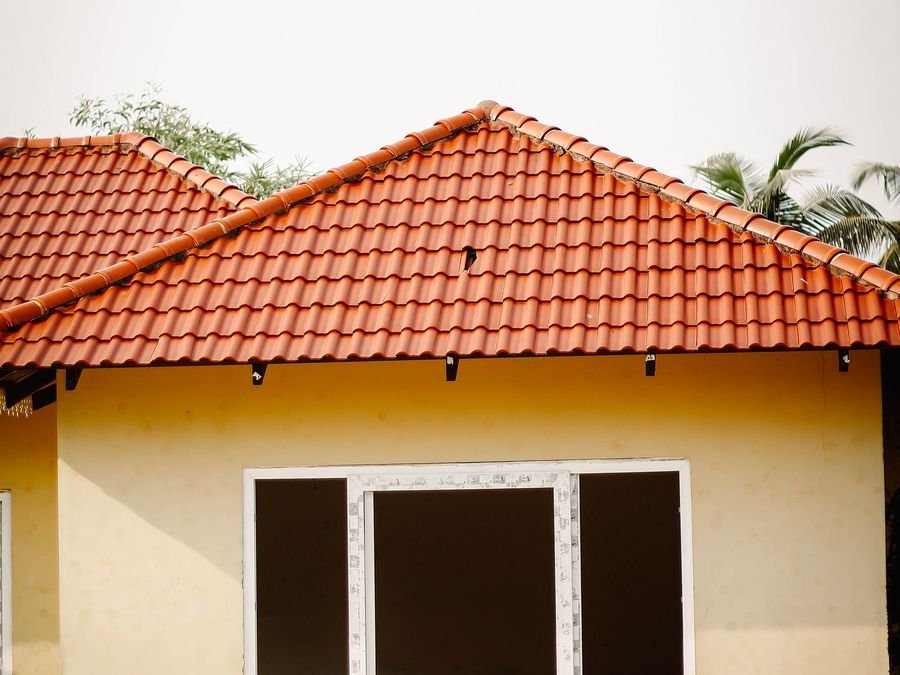

Screens fitted to windows, doors and large glazed openings.
Why AV FAB.TECH
Work that fits, first time.
Made to your measurements
Every gate, window and mesh panel is fabricated to the dimensions taken at your site — not cut down from a standard size.
Right material for the job
We advise the section, thickness and finish that suits your opening, budget and exposure, and confirm it before work starts.
Clean installation
Fitting, alignment and finishing are handled by our own team, so the work is left square, level and ready to use.
One point of contact
Fabrication, uPVC and mesh work are all handled in-house — you deal with one team from measurement to handover.
